Voltage Reference


I’m building three voltage references based on the Analog Devices (Linear Tech) LTZ1000. The PCB design is by Branadic and the main LTZ1000 circuit is by Dr Frank, both from the EEVBlog Forum.

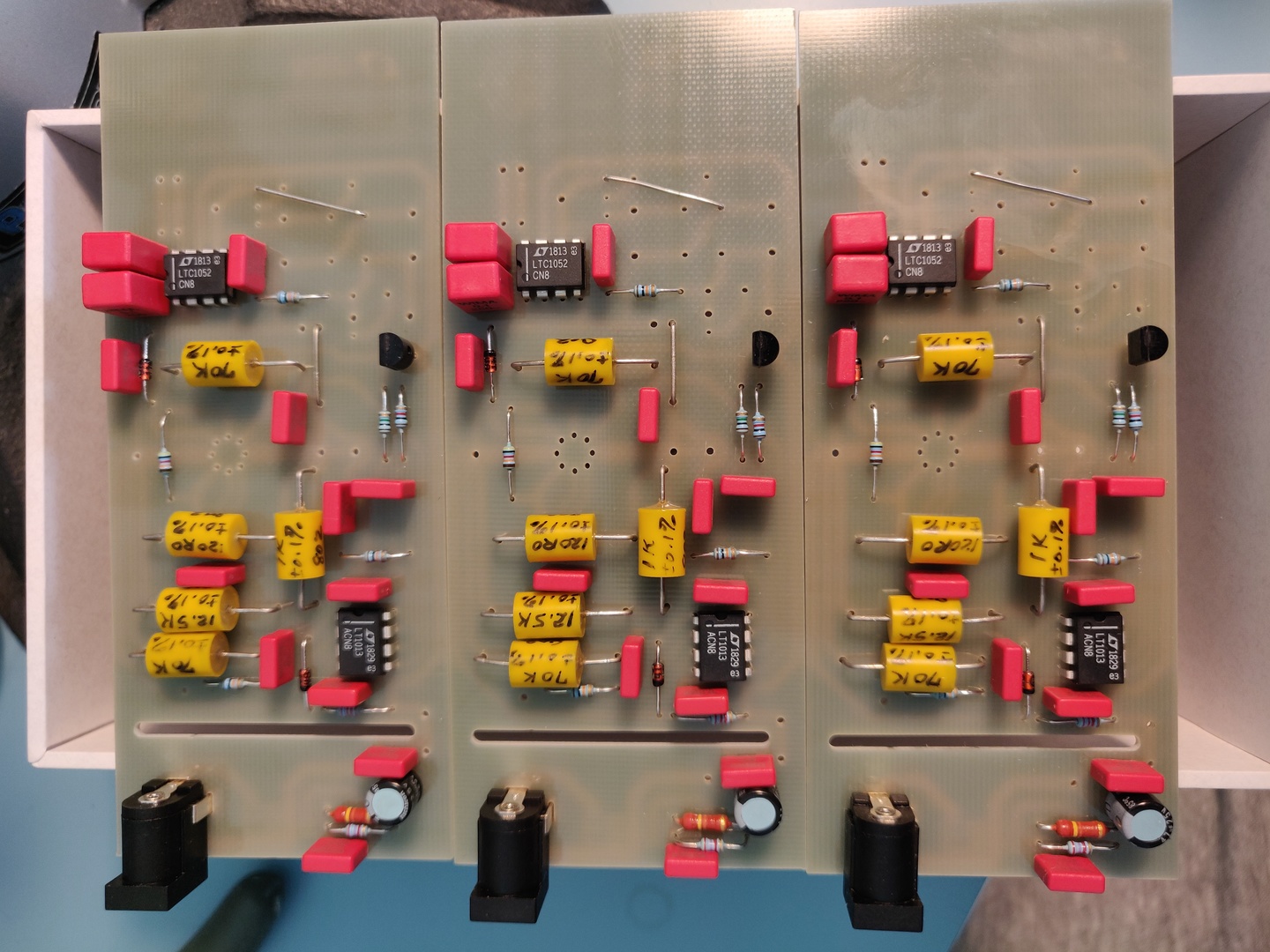

LTZ1000 PCBs

The resistors are precision wire wound resistors made by Edwin G. Pettis.

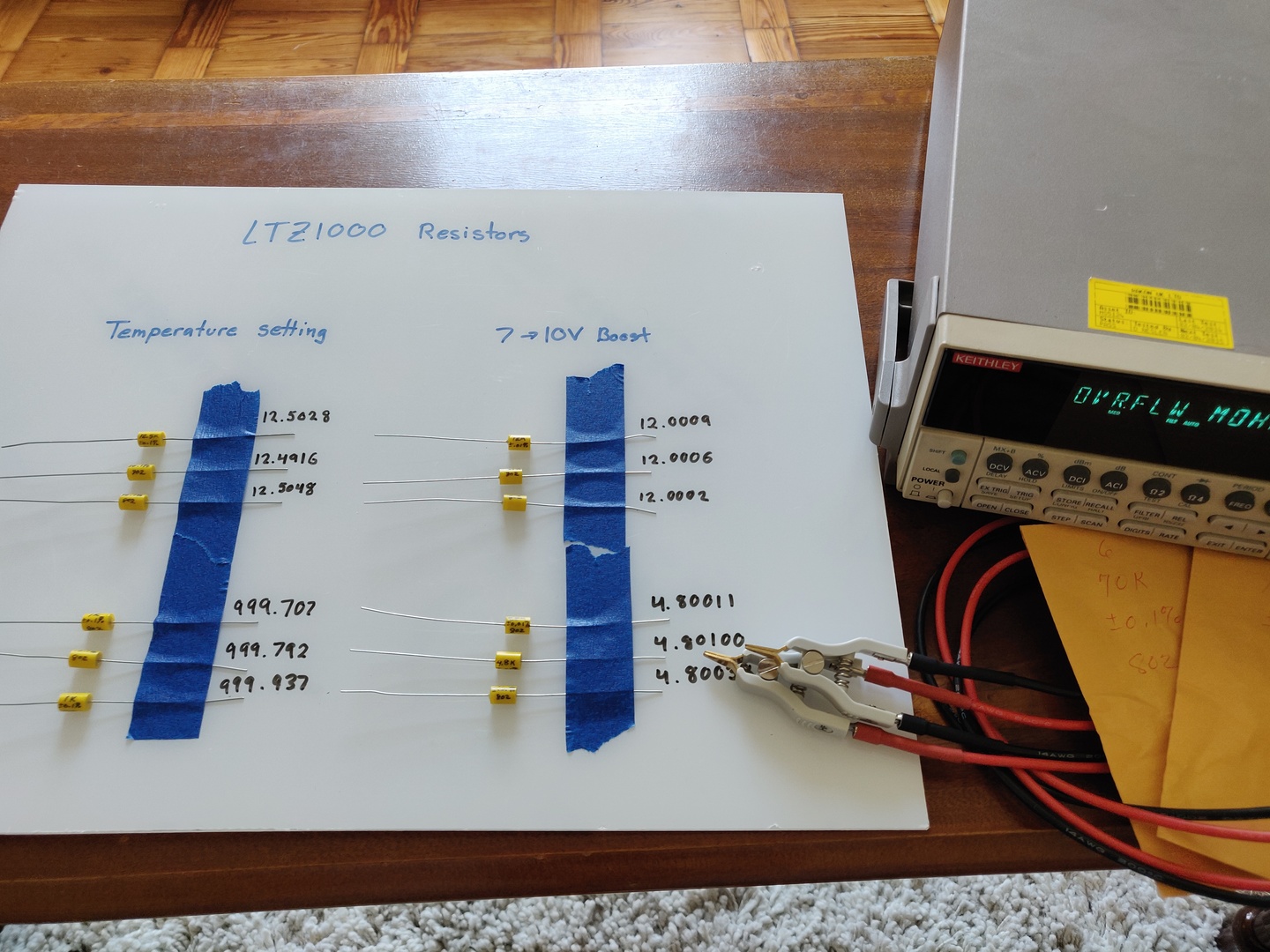

LTZ1000 Resistors

The completed references have been continuously running since March 2019, over 6,800 hours so far.

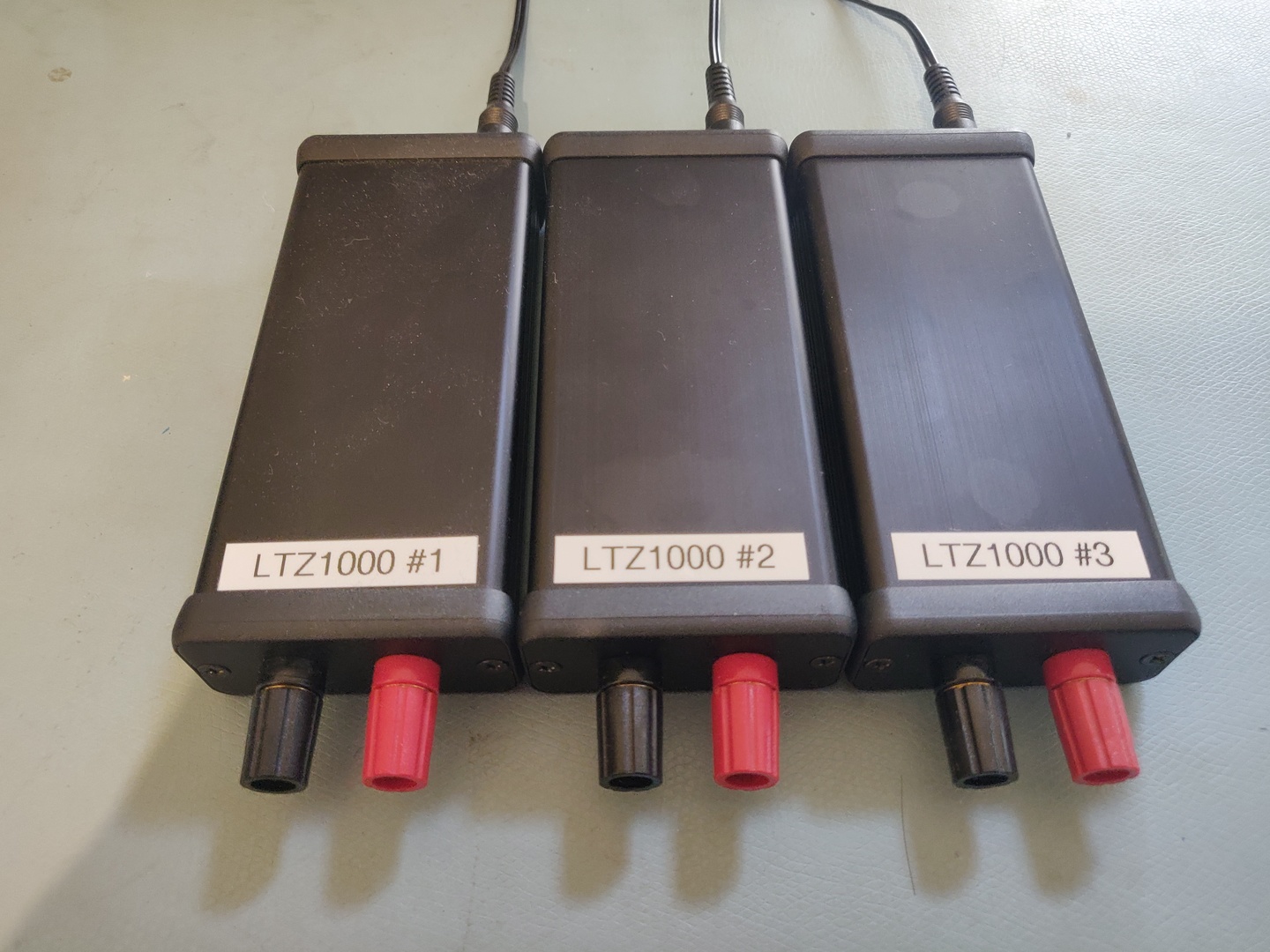

LTZ1000 References Assembled
